Aluminum Square Flat Celling Diffuser II

The Aluminum Square Flat Ceiling Diffuser is a concealed architectural HVAC air distribution component designed for flush integration into modern minimalist ceiling systems. It is engineered to achieve near-invisible ceiling appearance while maintaining stable and efficient air distribution performance in commercial and residential HVAC applications.

All units are manufactured on a project-specific, made-to-order basis according to ceiling layout, HVAC system requirements, and architectural design specifications. No standard stock sizes are available.

Concealed Architectural Design Concept

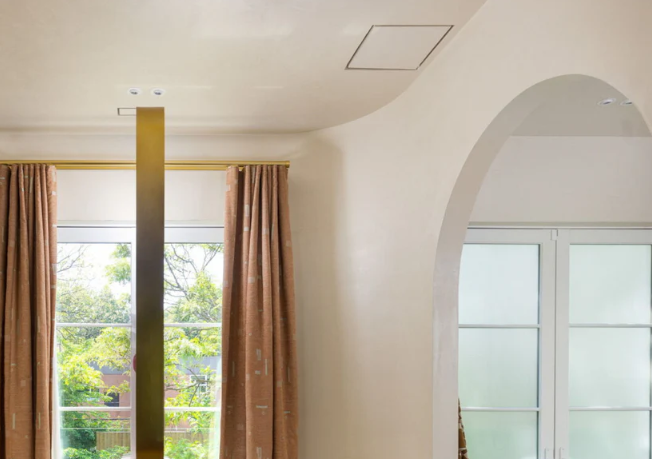

This diffuser features a fully flat, closed-center panel combined with a concealed peripheral linear air outlet gap. This design allows air to be delivered evenly through a minimal visible opening, creating a seamless integration with gypsum board and concealed ceiling systems.

The result is a clean architectural finish that maintains uninterrupted ceiling aesthetics while supporting functional HVAC air distribution.

This product is widely used in modern interior design projects where visual minimalism is a key requirement.

Problems This Product Solves

• Visible and bulky ceiling diffusers affecting interior aesthetics
• Uneven air distribution in concealed ceiling systems
• Air drafts directly impacting occupant comfort
• Lack of integration between HVAC terminals and architectural design
• Limitations of traditional diffusers in minimalist interior projects

Engineering Airflow Performance

The peripheral slot air outlet design ensures:

• Uniform air distribution across occupied zones
• Reduced direct air draft for improved occupant comfort
• Stable performance under central HVAC systems
• Compatibility with constant air volume (CAV) and variable air volume (VAV) systems
• Balanced air diffusion suitable for modern comfort requirements

Installation System

Designed for flush concealed ceiling installation, the diffuser uses a spring clip mounting system for secure and efficient installation.

Optional accessories include:

• Rear plenum box for optimized airflow distribution
• Adjustable damper for air balancing during HVAC commissioning

Material & Construction

• Material: High-grade extruded aluminum alloy
• Structure: Corrosion-resistant and suitable for long-term HVAC use
• Surface finish: Electrostatic powder coating
• Standard colors: RAL white, black, grey (custom RAL colors available)
• Panel design: Fully flat architectural surface for seamless ceiling integration

Problems This Product Solves (SEO Layer)

• Uneven airflow in concealed HVAC systems
• Visible ceiling diffusers affecting architectural aesthetics
• Air draft discomfort in occupied indoor spaces
• Inefficient air distribution in modern minimalist interiors
• Integration challenges between HVAC systems and ceiling design

Custom Manufacturing Capability

All products are manufactured on a project-based, made-to-order system. No standard stock sizes are provided.

Each diffuser is customized according to:

• Ceiling module layout and architectural design
• HVAC airflow requirements and system type
• Frame dimensions and slot configuration
• Installation method and structural conditions
• Surface finish and color requirements

OEM and private label production are available for bulk and project orders.

Configuration Options

• Fully custom square frame dimensions
• Adjustable peripheral air outlet gap design
• Optional rear damper integration
• Compatible with gypsum board and concealed ceiling systems
• Spring clip or project-specific mounting systems
• OEM branding and private label customization

Application Scenarios

Ideal for modern architectural HVAC projects including:

• Luxury residential apartments and villas
• High-end hotels and hospitality interiors
• Corporate office buildings
• Retail stores and premium showrooms
• Museums, galleries, and public buildings
• Commercial renovation and interior retrofit projects

Engineering Advantages

• Invisible ceiling integration for minimalist architectural design
• Stable and uniform airflow distribution in concealed systems
• Reduced noise and air turbulence performance
• Compatible with modern central HVAC systems
• Supports long-term architectural consistency in interior design

Related HVAC Air Distribution Products

To help you select the right air distribution system, you may also consider:

- Aluminum Square Ceiling Diffuser (balanced multi-direction airflow)
- Aluminum Round Ceiling Diffuser (uniform 360° air distribution)
- Aluminum Floor Swirl Diffuser (high mixing efficiency for comfort cooling)
- Aluminum Ring Jet Diffuser (long-throw air distribution for high ceilings)

Availability & Quotation

This product is made-to-order only. No stock sizes are available.

Quotation is based on:

• Ceiling design complexity and layout
• Airflow configuration and HVAC system type
• Dimensions and slot design requirements
• Surface finish and color specifications
• Project quantity and installation method

Please provide architectural drawings or HVAC specifications for accurate quotation.

We typically respond within 24 hours.
